Magnetic mounting base
| 외 형 | 품 명 | 품 번 | 센서측 나사 | 외 경 | 호환모델 |
 |

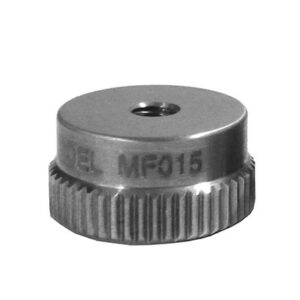

Magnetic Base, 10-32 Tapped Hole, OD 19.05 mm, 15 lfb | 28623-03 | 10-32 UNF | 0.75″ (19.05 mm) | Wilcoxon MF015 |
|

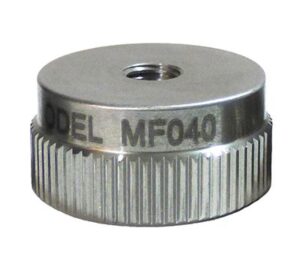

Flat Magnetic Mounting Base, Dia. 1 in, 40 lbf | 28625-01  |
1/4-28 UNF | 1″ (25.4 mm) | Wilcoxon MF040 |
 |

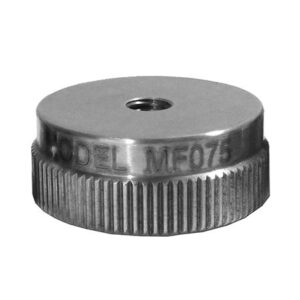

Flat Magnetic Base, 1/4-28 UNF Tapped Hole, OD 31.75mm, 75 lbf | 28625-02 | 1/4-28 UNF | 1.25″ (31.75 mm) | Wilcoxon MF075 |
 |

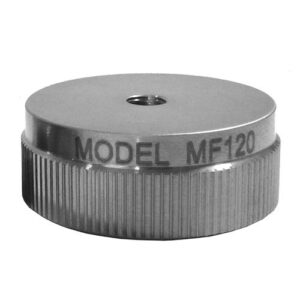

Flat Magnetic Base, 1/4-28 UNF Tapped Hole, OD 38.1mm, 120 lbf | 28625-03 | 1/4-28 UNF | 1.5″ (38.1 mm) | Wilcoxon MF120 |
 |

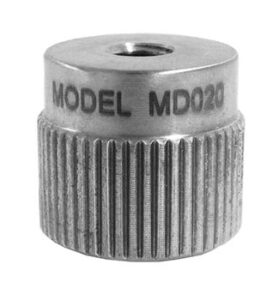

2-pole Magnetic Base, 1/4-28 UNF Tapped Hole, OD 19.05 mm, 20 lbf | 28626-01 | 1/4-28 UNF | 0.75″ (19.05 mm) | Wilcoxon MD020 |
 |
2-pole Magnetic Base, 1/4-28 UNF Tapped Hole, OD 25.4 mm, 35 lbf | 28626-02 |
1/4-28 UNF | 1″ (25.4 mm) | Wilcoxon MD035 |
 |

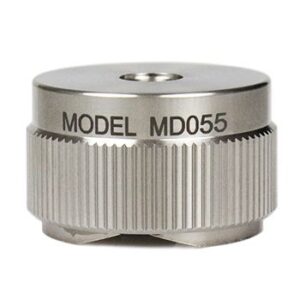

2-pole Magnetic Base, 1/4-28 UNF Tapped Hole, OD 31.75 mm, 55 lbf | 28626-03 | 1/4-28 UNF | 1.25″ (31.75 mm) | Wilcoxon MD055 |
 |

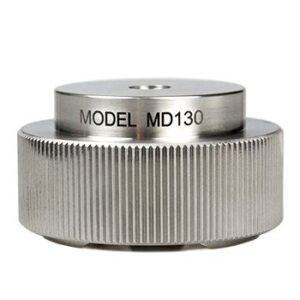

2-pole Magnetic Base, 1/4-28 UNF Tapped Hole, OD 50.8 mm, 130 lbf | 28626-04 | 1/4-28 UNF | 2.0″ (50.8 mm) | Wilcoxon MD130 |
| 2-pole Magnetic Base, triaxial, for 883M | 28626-05 | 1/4-28 UNF | Wilcoxon MD883 |
)는 산업용으로 많이 사용됨을 의미합니다.
