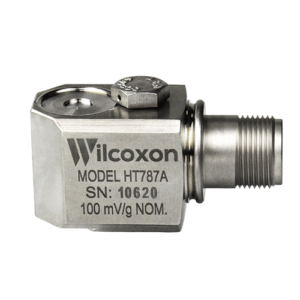

HT787A, High temperature accelerometer, 165°C, 100 mV/g

  • High temperature accelerometer
  • operation to 165°C/329°F
  • 100 mV/g sensitivity
  • ±5% sensitivity tolerance
  • side exit 2-pin MIL-C-5015-style connector
  • case isolated

High temperature accelerometer features

  • Operates in environments up to 165°C
  • ESD and reverse wiring protection
  • Manufactured in an approved ISO 9001 facility
  • Hermetic seal

Included accessories

  • 1/4-28 captive screw

Specifications

PARAMETERVALUE
Sensor outputDynamic vibration (IEPE)
Sensitivity100 mV/g
Sensitivity tolerance±5 %
Frequency response, ±3 dB0.7 Hz – 10,000 Hz
Mounting thread1/4-28 captive screw
Connector styleMIL-C-5015, 2-pin
Connector orientationSide exit
Full-scale range80 g peak
Resonance frequency22 kHz
Temperature range-50°C to +165°C
Weight145 grams
Hazardous area approvalsNon-approved
