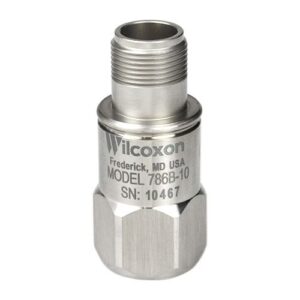

786B-10 General Purpose Accelerometer, 100mV/g
특성
- Accelerometer
- general purpose vibration sensor
- 100 mV/g sensitivity
- ±10% sensitivity tolerance
- top exit 2-pin MIL-C-5015-style connector
- case isolated
- Hermetic seal
- Wide frequency range
- Reverse wiring protection
- Case isolated
- Corrosion resistant stainless steel case
제공 악세사리
- 시험 성적서 (Calibration data, level 2)
- 센서 고정용 나사 (#80165-01 captive hex head screw)
규격
| PARAMETER | VALUE |
|---|---|
| Sensor output | Dynamic vibration (IEPE) |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±10 % |
| Frequency response, ±3 dB | 0.5 Hz – 14,000 Hz |
| Mounting thread | 1/4-28 tapped hole |
| Connector style | MIL-C-5015, 2-pin |
| Connector orientation | Top exit |
| Full-scale range | 80 g peak |
| Resonance frequency | 30 kHz |
| Temperature range | -50°C to +120°C |
| Weight | 90 grams |
| Hazardous area approvals | Non-approved |
