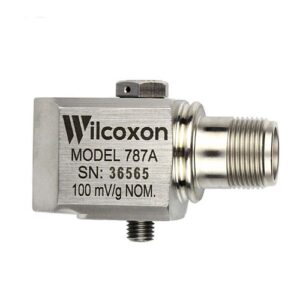

787A Industrial accelerometer sensor, 100 mV/g, low profile
특성
- Industrial accelerometer sensor
- 100 mV/g sensitivity
- ±5% sensitivity tolerance
- low profile with side exit
- MIL-C-5015-style connector
- 1/4-28 thread captive mounting screw
- API 670 compliant
- Suitable for a wide range of industrial applications
- Rugged design, hermetically sealed
- ESD, overload, and reverse wiring protection
제공 악세사리
- 시험 성적서 (Calibration data, level 2)
- 센서 고정용 스터드 (SF6 1/4-28 mounting stud, 사용자 요구에 따라 변경 가능)
규격
| PARAMETER | VALUE |
|---|---|
| Sensor output | Dynamic vibration (IEPE) |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±5 % |
| Frequency response, ±3 dB | 0.5 Hz – 10,000 Hz |
| Mounting thread | 1/4-28 captive screw |
| Connector style | MIL-C-5015, 2-pin |
| Connector orientation | Side exit |
| Full-scale range | 80 g peak |
| Resonance frequency | 22 kHz |
| Temperature range | -55°C to +120°C |
| Weight | 145 grams |
| Hazardous area approvals | Non-approved; approved models available |
