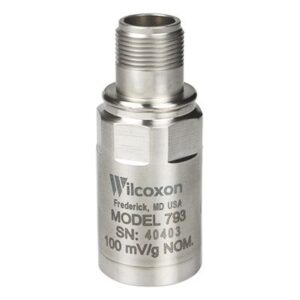

793 High performance general purpose accelerometer, 100 mV/g
특성
- High performance
- general purpose
- IEPE accelerometer
- 100 mV/g sensitivity
- ±5% sensitivity tolerance
- low noise
- wide frequency response
- top exit
- MIL-C-5015-style connector
- Hazardous area certified and radiation resistant models available
제공 악세사리
- 센서 고정용 스터드 (SF6 1/4-28 mounting stud, 사용자 요구에 맞는 나사산 제공)
- 옵션: 접착식 센서 고정 패드 (SF8 cementing pad 선택 가능)
규격
| PARAMETER | VALUE |
|---|---|
| Sensor output | Dynamic vibration (IEPE) |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±5 % |
| Frequency response, ±3 dB | 0.5 Hz – 15,000 Hz |
| Mounting thread | 1/4-28 tapped hole |
| Connector style | MIL-C-5015, 2-pin |
| Connector orientation | Top exit |
| Full-scale range | 80 g peak |
| Resonance frequency | 25 kHz |
| Temperature range | -50°C to +120°C |
| Weight | 112 grams |
| Hazardous area approvals | Non-approved; approved models available |
